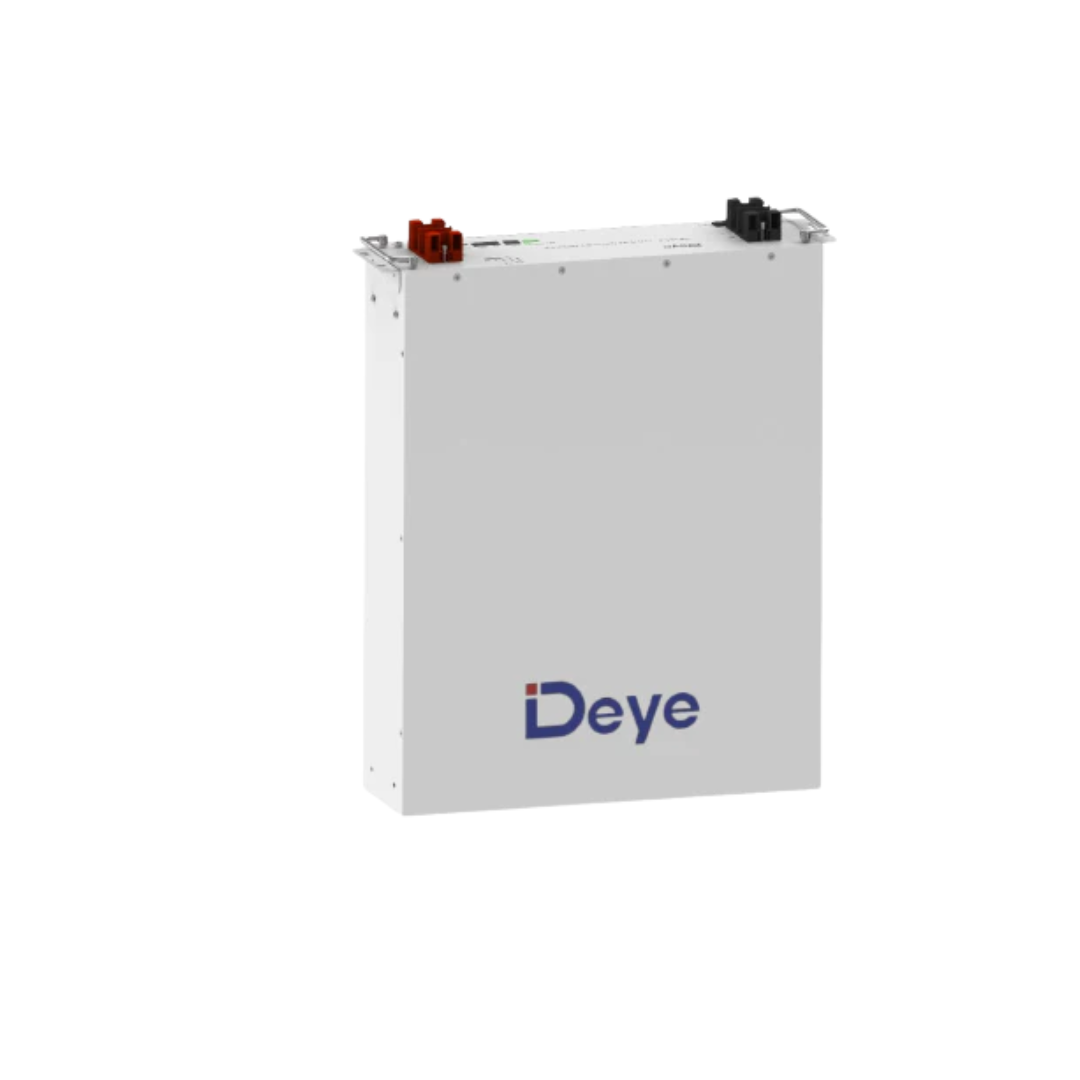

DEYE 5.32kWh LV (Low Voltage) 104AH Lithium Battery SE-G5.3 ONLY 1 BATTERY INCLUDED, PICTURE IS JUST FOR DISPLAY Warehouse stock — confirm availability before collection. Description: The SE-G5.3 is a modular lithium iron phosphate (LiFePO₄) battery engineered for durability, safety, and scalable energy storage. Designed for residential and commercial systems, this low-voltage battery features intelligent monitoring, long cycle life, and versatile mounting options. Engineered for Safety and Longevity -Built with cobalt-free LiFePO₄ cells for thermal stability and non-toxic operation -Safe low-voltage design ensures reliable performance across a variety of environments -Cycle life exceeds 6000 cycles at 90% DoD, providing long-term energy storage value High Performance Energy Delivery -Supports continuous 1C charging and discharging rates -5.32 kWh total energy, with 4.79 kWh usable capacity -90% recommended Depth of Discharge (DoD) -Peak discharge current of 150A for 2 minutes at 25°C Built-In Intelligence and Protection -Integrated BMS actively monitors voltage, current, and temperature -IP20 protection rating with natural convection cooling -Wide operating temperature range: -20°C to 55°C Modular and Scalable -Expandable up to 64 units in parallel (32 without external configuration) -Auto-balancing function between modules with different SOC levels -Ideal for self-consumption optimization in home and business energy systems Convenience and Smart Control -Automatic networking and IP addressing — no DIP switch configuration required -Supports Deye platform for remote firmware updates and monitoring -Also supports firmware upgrade via USB drive Eco-Conscious Design -Constructed with pollution-free, environmentally safe materials -Compact 19-inch 3U design conserves space without compromising capacity Mounting Flexibility -Compatible with standard 19” server racks (depth ≥ 600mm) -Also supports floor-mounted or wall-mounted installation via wall brackets Technical Specifications -Chemistry: Lithium Iron Phosphate (LiFePO₄) -Nominal Voltage: 51.2V -Operating Voltage: 43.2–57.6V -Capacity: 104Ah -Energy: 5.32kWh (Total), 4.79kWh (Usable) -Dimensions: 440 × 133 × 560 mm -Weight: 44 kg -Recommended Current: 50A | Max: 100A | Peak: 150A -SOC Indicators: 5 LEDs for charge status, 3 LEDs for working, alarm, and protection -states -Communication: CAN2.0, RS485 -Humidity Range: 5%–95% -Max Altitude: ≤2000m -Certifications: UN38.3, CE, IEC62619 Warranty & Installation -10-year limited warranty (terms and conditions apply) -Installation by a qualified electrician is required -Valid COC must be issued upon completion -Installation must comply with SANS 10142 DATA SHEET https://flipbook.pagepreserve.com/deye-se-g5-3-user-manual
