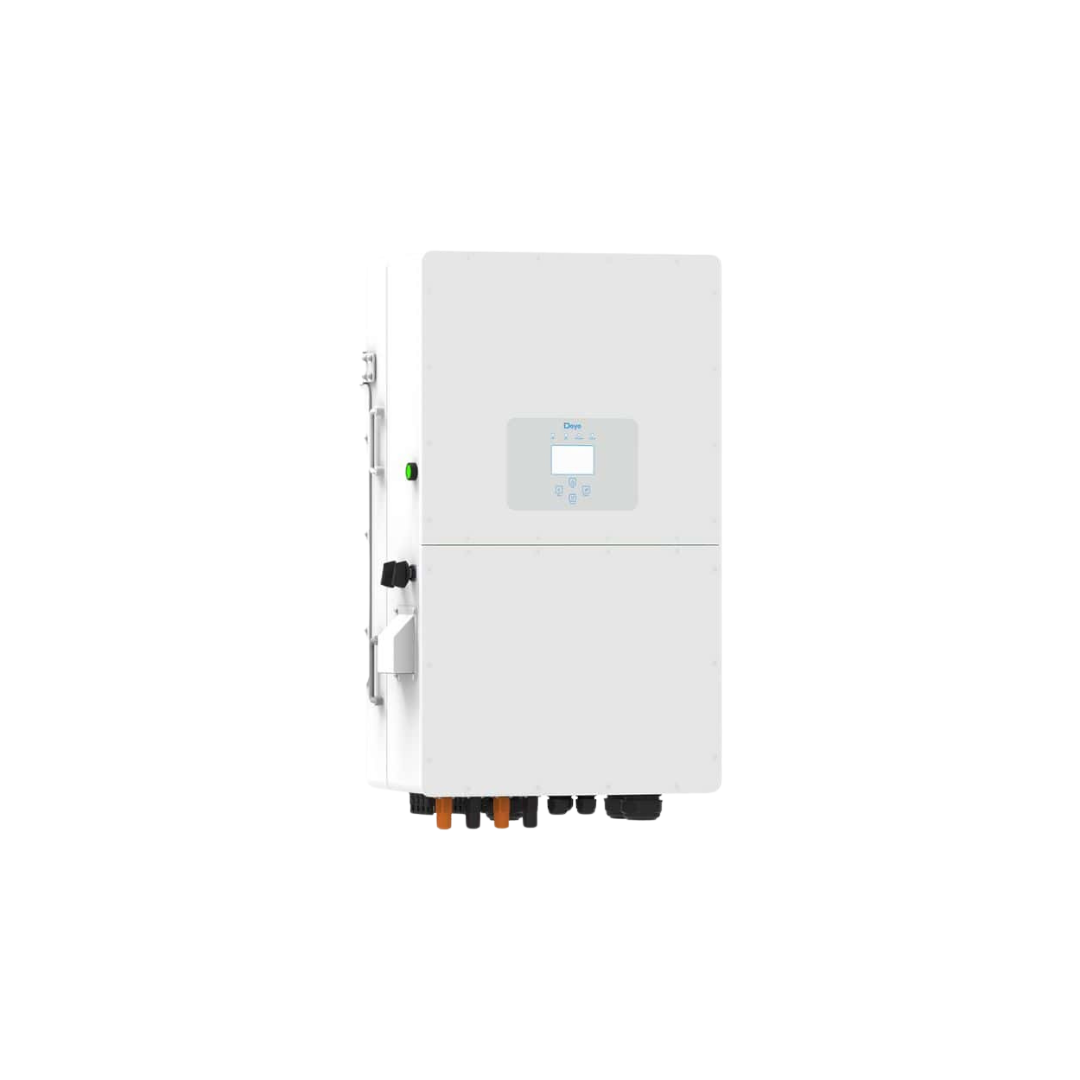

50KW Deye 3 Phase High Voltage Hybrid Inverter ONLINE DEAL ONLY, CAN BE ORDERED FOR IN STORE COLLECTION Description: The Deye 3-Phase Hybrid Inverter Series ( SUN-50K-SG01HP3-EU-BM4) offers high-efficiency power management, seamless scalability, and full energy independence for large-scale residential, commercial, or industrial applications. Compatible with high-voltage lithium battery banks, this inverter series is designed to meet the demands of both grid-tied and off-grid systems, supporting up to 10 units in parallel and offering 100% unbalanced output per phase . DATA SHEET Key Features: Advanced Energy Management -Supports charging/discharging up to 100A , with dual 50A channels for load balancing -Configurable 6 time periods for charging and discharging for smart energy scheduling -Compatible with diesel generators for off-grid energy storage Hybrid & AC Coupling Flexibility -Supports solar, grid, generator, and battery integration -AC-coupling ready – ideal for retrofitting into existing solar systems -Parallel support for up to 10 units for larger installations Battery and PV Compatibility -Works with high-voltage lithium-ion batteries (160V–800V) -Up to 2 battery inputs per inverter -PV Input Power Range: -From 38,870W (29.9kW model) up to 65,000W (50kW model)- Max PV Input Voltage: 1000V | MPPT Range: 150–850V -3 or 4 MPPT trackers , model dependent Performance and Protection -Max Efficiency: 97.6% | MPPT Tracking Efficiency: >99% -Comprehensive protection features: -Reverse polarity -Overvoltage and short-circuit protection -Surge protection (Type II DC & AC) -Ground fault, islanding, and thermal protection Smart Monitoring & Connectivity -Communication interfaces: RS485, RS232, CAN -Optional monitoring: WiFi, Bluetooth, 4G, LAN, GPRS -Real-time data viewing and system updates via app or web Built to Last -IP65 rated for indoor/outdoor use -Intelligent air cooling -Operates from -40°C to +60°C (derating above 45°C) -Max altitude: 2000m -Noise level: ≤65 dB Dimensions & Weight -Size: 527 x 894 x 294 mm -Weight: 80 kg Benefits of the Deye 3-Phase HV Inverter Series: -Massive Power Scalability Supports up to 500kW in parallel — ideal for industrial or large-scale residential solar systems. -Unmatched System Flexibility Each phase supports 100% unbalanced output, ensuring consistent supply across varied loads. -Effortless Retrofit Integration Built-in AC-coupling allows upgrades to existing PV systems without major changes. -Smart Energy Optimization Time-based charge/discharge settings maximize efficiency and reduce reliance on the grid. -Commercial-Grade Reliability Built for tough environments with global certifications and robust protection features. Installation & Warranty -Standard 5-Year Warranty , extendable to 10 years depending on installation site and registration -Must be installed by a qualified wireman or master electrician , registered with the Department of Labour -A valid COC (Certificate of Compliance) is required -Installation must fully comply with SANS 10142 regulations -Non-compliant installations may void the warranty
