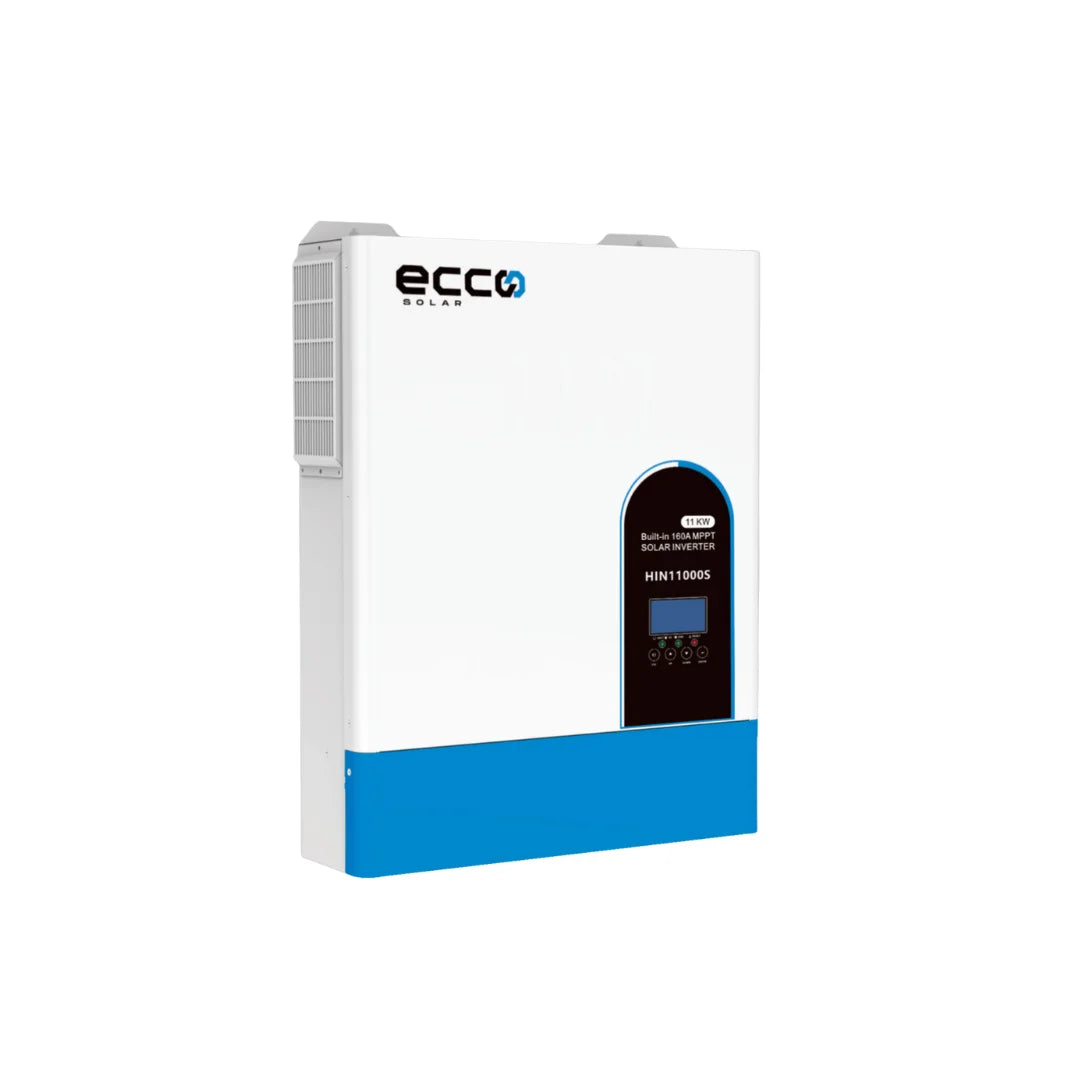

11KVA / 11000W Ecco MPPT Hybrid Inverter Pure Sine Wave The 11KVA / 11000W Ecco MPPT Hybrid Inverter offers a reliable, high-performance energy solution with pure sine wave output and built-in 2 MPPT for efficient solar energy management. Featuring lithium battery activation via PV or utility, it supports LiFePO4 batteries and offers advanced power features including a 94% peak efficiency rate, overload protection, and remote Wi-Fi monitoring. Designed for both residential and commercial use, this inverter is perfect for off-grid and backup power applications, with a wide voltage range, quick transfer times, and robust durability for harsh environments. Built-in 2 MPPT Lithium Battery Activation Function : Activated by PV or Utility Compatible with LiFePO4 Battery via RS485 communication Pure Sine Wave Output Power Factor : 1.0 Maximum PV Input : 500Vdc Built-in MPPT : 160A Capable of Working Without Battery Detachable Dust Cover : Designed for harsh environments Optional Wi-Fi Remote Monitoring Supports Multiple Output Priorities : SUB, SBU, SUF EQ Function : Optimizes battery performance and extends lifecycle Specifications : Model : HIN11000S Capacity : 11KVA / 11KW Maximum PV Input Power : 11KW Parallel Capability : Not available Lithium Battery Activation : Yes (by PV or Utility) Lithium Battery Communication : Yes (RS485) Input : Nominal Voltage : 230VAC Acceptable Voltage Range : 170-280VAC (For Personal Computer) 90-280VAC (For Home Appliances) Frequency : 50/60 Hz (Auto Sensing) Output : Nominal Voltage : 220/230/240VAC Surge Power : 2200VA Frequency : 50/60 Hz Waveform : Pure Sine Wave Transfer Time : 10ms (For Computers) 20ms (For Home Appliances) Peak Efficiency : 94% Overload Protection : 5s @ 140% load Battery : Battery Voltage : 48V Maximum Discharge Current : 220A Floating Charge Voltage : 54VDC Overcharge Protection : 63VDC Charging Method : CC/CV Solar Charger & AC Charger : Solar Charger Type : MPPT Max. PV Array Power : 5500W * 2 Max. PV Array Open Circuit Voltage : 500VDC PV Array MPPT Voltage Range : 60VDC - 500VDC Max. Solar Input Current : 18A * 2 Max. Solar Charge Current : 160A Max. AC Charge Current : 120A Max. Charge Current : 160A Physical : Dimensions (D x W x H) : 540mm x 415mm x 122mm Net Weight : 15kg Communication Interface : RS232 / RS485 / Dry Contact LCD : Available Installation & Warranty -Standard 5-Year Warranty -Must be installed by a qualified wireman or master electrician , registered with the Department of Labour -A valid  COC (Certificate of Compliance) is required -Installation must fully comply with SANS 10142 regulations -Non-compliant installations may void the warranty
