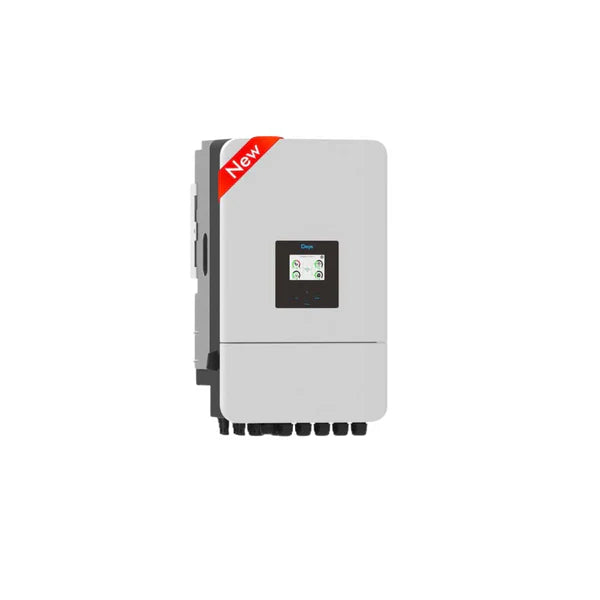

DEYE 8KVA Hybrid Inverter MPPT LV + WiFi ( SUN-8K-SG05LP1-EU-SM2 ) Description: This 8kW hybrid inverter is a versatile and efficient solution for residential and small commercial solar energy systems. Designed for performance, reliability, and ease of use, it supports multiple battery types, features dual MPPT tracking, and delivers fast, intelligent energy management with internet-based monitoring. Performance & Efficiency Rated power output: 8000W Maximum output: 8800W Surge power: 2× rated output (10 seconds) Maximum inverter efficiency: 97.6% European weighted efficiency: 97% MPPT tracking efficiency: 99.9% Supports self-consumption ratio up to 80% with DC/AC ratio of 1.3 Optimized for double-sided PV modules Battery Compatibility Supports lithium-ion and lead-acid batteries Battery voltage range: 40V – 60V Charge/discharge current: Up to 190A 3-stage charging with equalization BMS auto-adaptation for lithium batteriesOptional external temperature sensor PV Input (Solar) Max DC input: 10,400W PV input voltage range: 100V – 500V (rated at 370V) MPPT operating range: 125V – 425V Start-up voltage: 150V Two MPPTs with 2+2 string configuration PV input current: 18A + 18A AC Output & Grid Features AC output: 120/240V (split phase), 208V (2/3 phase), 230V (single phase) Frequency: 50/60Hz auto-adjust Rated output current: 33.4A / 35A Max output current: 38.3A / 40A Continuous pass-through: 50A Grid type: Compatible with single, split, and 2/3 phase THD: <3% (linear load <1.5%) Smart & Reliable Operation LCD touchscreen and physical buttons for easy configuration Wi-Fi port enabled (Wi-Fi dongle optional) Remote monitoring via app and browser Grid-tied to off-grid auto-switch in under 5ms Zero-export mode with <200ms reaction time Programmable charge/discharge schedule Supports wind and solar DC inputs Expandable: Up to 16 inverters in parallel Retrofit-ready for existing solar systems Built-in Protections Arc fault detection (non-EU models) PV lightning protection Anti-islanding and polarity reversal protection Residual current monitoring Over-voltage, over-current, and short-circuit protection Insulation resistance detection Design & Compliance Cooling: Active fan-based system Low-noise: <30 dB Communication: RS485 & CAN for BMS integration Protection rating: IP65 (outdoor-ready) Weight: 32kg Size: 680 × 420 × 233 mm Mounting: Wall-mounted Certifications Grid standards: UL1741, IEEE1547, VDE0126, AS4777, NRS2017, G98/G99 Safety: IEC62109-1/2 EMC compliance: EN61000-6-1, EN61000-6-3, FCC Part 15 Class B Warranty 5-year repair warranty. Important : Installation must be performed by a qualified electrician. A valid COC and installation photos may be required to validate warranty claims. All installations must adhere to SANS 10142.
