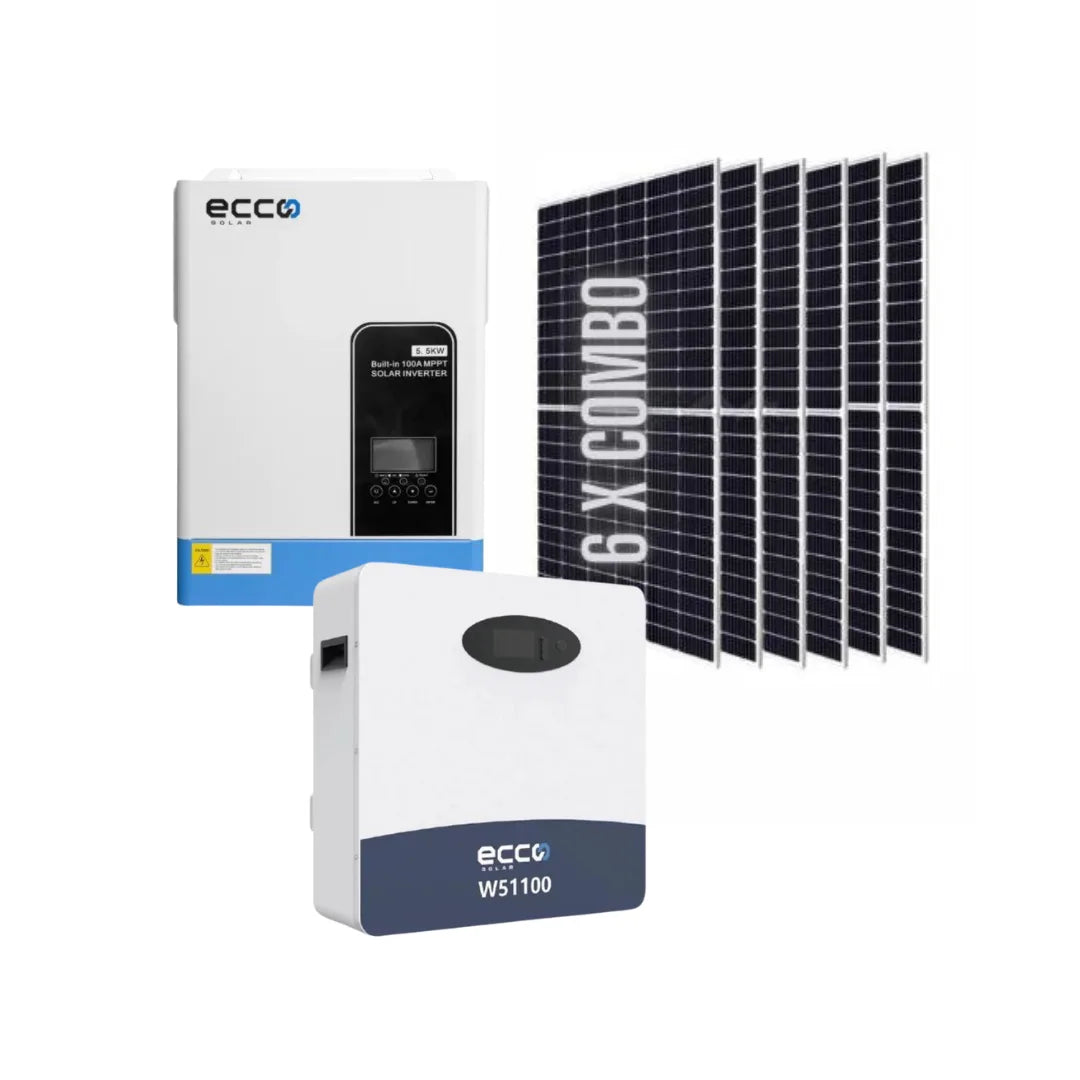

6.2KVA/6200W Ecco MPPT Hybrid Inverter + 1 x 5.12kWh 100AH Battery + 6x 560W Megatron Tier 1 Solar Panel (HZS-560W) Reliable 6.2kW ECCO Hybrid Inverter with Advanced Battery & Solar Integration The HIN6200S Hybrid Inverter is a high-performance single-phase solar inverter designed for efficient energy conversion and battery management. With 6,500W maximum PV input power, this inverter ensures optimal solar energy harvesting for both residential and commercial applications. Featuring pure sine wave output, intelligent MPPT charging, and seamless lithium battery integration, it delivers reliable backup power and grid-tied functionality. What’s included ? 1x 6.2KVA/6200W Ecco MPPT Hybrid Inverter + 1x 5.12k Ecco kWh 100AH Battery + 6x 560W Megatron Tier 1 Solar Panel (HZS-560W) SOLAR PANELS ARE COURIERED AT OWN RISK Key Features: Powerful & Efficient Performance Maximum Power Output: 6,200W for continuous load supply. Surge Power: 12,400VA to handle high starting loads. Dual Output Design: Supports multiple load priorities. 94% Peak Efficiency: Maximizes energy savings and performance. Smart Battery & Solar Charging Lithium Battery Activation: Enables seamless PV or utility charging. Battery Voltage: 48V DC with floating charge at 54V DC . Overcharge Protection: Automatically prevents battery damage at 63V DC . Flexible Charging Options: 120A max solar charge, 80A AC charge, and hybrid charging up to 120A . Advanced MPPT Technology for Maximum Solar Harvesting Maximum PV Input: 6,500W to optimize solar efficiency. MPPT Voltage Range: 60V–500V DC for versatile solar compatibility. High Voltage Tolerance: 500V DC open circuit capacity . Smart Grid & Backup Power Management Grid Voltage Range: 170-280V AC (Computers) / 90-280V AC (Appliances) . Auto Frequency Detection: 50/60Hz sensing for global compatibility. Seamless Switchover: 10ms for computers, 20ms for appliances . Built for Durability & Safety Operating Temperature: -10°C to 50°C for various environments. Humidity Resistance: 5%–95% non-condensing . Overload Protection: Handles up to 140% load with auto safety cut-off . Technical Specifications: General Model: HIN6200S Phase: Single-phase input/output Parallel Capability: No Battery Communication: Yes (RS485) AC Input & Output Nominal Voltage: 230V AC Acceptable Voltage Range: 170–280V AC (Computers) 90–280V AC (Home Appliances) Frequency: 50/60Hz (Auto-Sensing) Waveform: Pure Sine Wave Transfer Time: 10ms (Computers) / 20ms (Appliances) Battery & Charging Battery Voltage: 48V DC Floating Charge Voltage: 54V DC Overcharge Protection: 63V DC Charging Method: CC/CV (Constant Current / Constant Voltage) Solar & MPPT Charger MPPT Controller: Yes Maximum PV Array Power: 6,500W Max PV Open Circuit Voltage: 500V DC MPPT Voltage Range: 60V – 500V DC Max Solar Input Current: 27A Max Solar Charge Current: 120A Max AC Charge Current: 80A Max Total Charge Current: 120A Physical & Connectivity Dimensions: 438 × 312 × 122 mm Package Size: 540 × 390 × 210 mm Weight: 11 kg Communication Interface: RS485 (RJ45) / RS232 (DB9) Environmental Conditions Operating Temperature: -10°C to 50°C Storage Temperature: -15°C to 60°C Humidity: 5% – 95% (Non-Condensing) Warranty 5-Year Warranty for long-term reliability. Failure to provide the above may void the warranty. Lithium Battery (Ecco 51.2V 100Ah 5.12kWh W51100 – Wall-Mounted) Key Features: - Wall-mounted design – easy to install and aesthetically pleasing - Lithium Iron Phosphate (LiFePO4) cells – safe, long life cycle - Max 1C charge/discharge rate - User-friendly interface - Compatible with multiple inverter brands - Supports up to 16 parallel groups - Compliant with North American UL & EU TUV standards Advantages: Longer Cycle Life: Up to 20× longer cycle life and 5× longer float/calendar life than lead-acid batteries Lighter Weight: ~40% of the weight of comparable lead-acid batteries Higher Power: 2× the power of lead-acid batteries while maintaining high energy capacity Wider Temperature Range: -20°C to 60°C Superior Safety: Eliminates risk of explosion or combustion from impact, overcharging, or short circuits What’s in the Box? Battery Battery Cables & Mounts Battery Parameters: Battery Type: Set to “USE” Bulk Charge Voltage: 56.4-56.6V Float Charge Voltage: 54V Cut-off Voltage: 47V Technical Specifications: Nominal Voltage: 51.2V Nominal Capacity: 100Ah Total Power: 5.12kWh Best Operating Voltage Range: 43V - 54.5V Short Circuit Protection: Yes Power-on Reverse Connection Protection: Optional Max Charging Voltage: 57.6V Best Charging Voltage: 56.4V (Recommended) Max Continuous Output Power: 5500W Max Momentary Output Power: 7500W Local Parameter Configuration: Supported Max Installation Dimensions (mm): 480 × 170 × 500 Package Size (mm): 590 × 290 × 615 Weight: 49kg IP Class: IP54 Communication: RS485, RS232, CAN Design Life: 15 years Battery: Voltage: 48V Max Discharge Current: 220A Floating Charge Voltage: 54VDC Overcharge Protection: 63VDC Charging Method: CC/CV 5-Year Warranty Installation must be performed by a qualified electrical wireman or Master Electrician with valid registration with the Department of Labour. A valid Electrical Certificate of Compliance (COC) must be issued after installation, specific to the backup or solar system. Installation must comply with SANS 10142 and all its parts. Warranty claims must include: Installation photos Valid COC Proof of installation by a qualified wireman or Master Electrician Warranty & Installation Requirements Battery + Inverter - 5-year limited warranty Solar panels -15 year product warranty All lithium batteries and inverters must be installed by a qualified electrical wireman or Master Electrician registered with the Department of Labour. A valid Certificate of Compliance (COC) specific to the solar or backup system must be issued after installation. The setup must comply with SANS 10142 regulations. Warranty claims without a COC, installation photos, or proof of qualified installation may be rejected.
