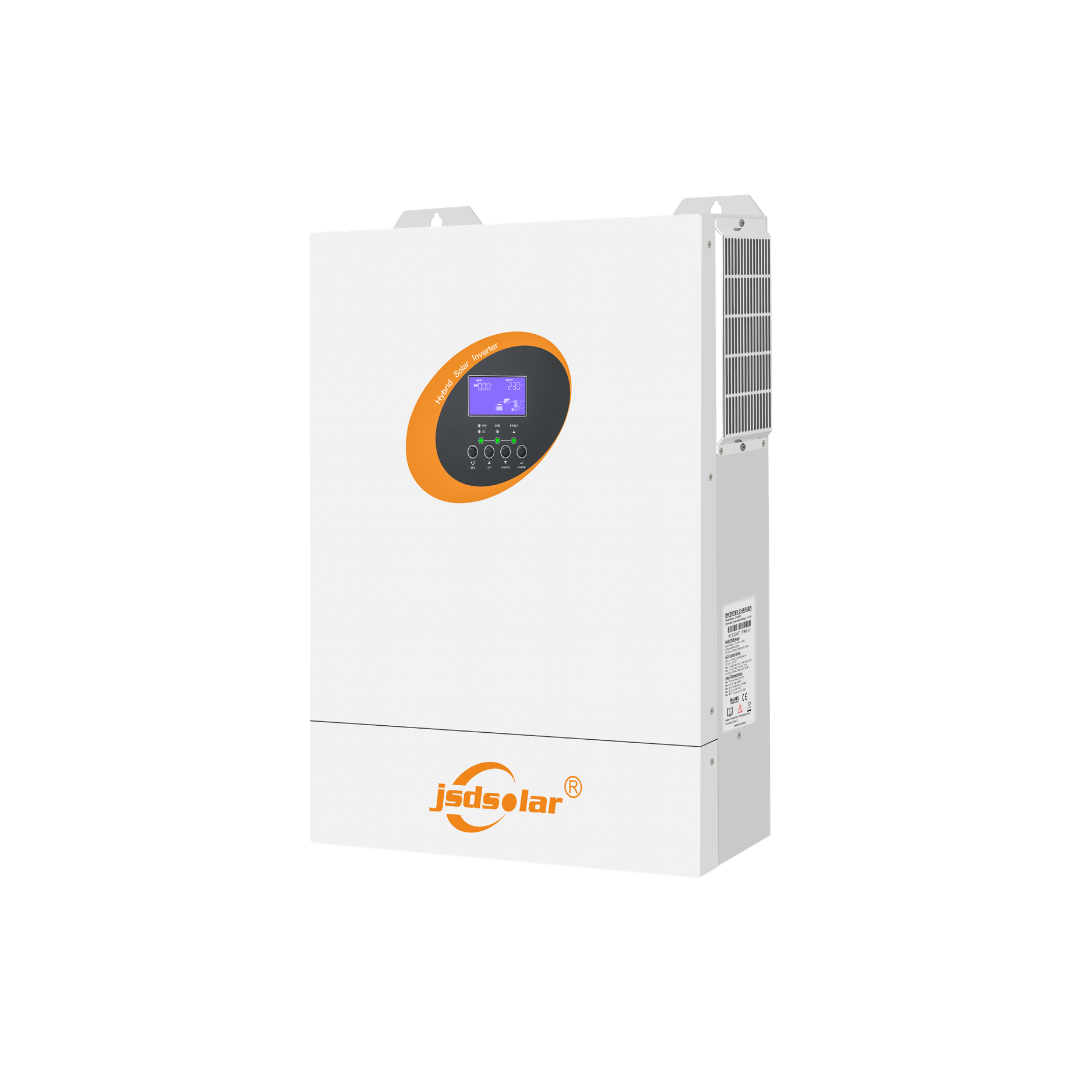

Title: Ecco J11000H 11kVA 48V Hybrid Inverter 2 MPPT 500V PV Description: The Ecco J11000H is a high-output 48V hybrid inverter built for demanding residential and light commercial solar backup systems. It combines strong PV input capability, high-current battery charging, and flexible operating priorities to suit a wide range of installation requirements. PV and MPPT Solar Charging Built-in 2 MPPT trackers for efficient energy harvesting across varying roof strings Maximum PV input voltage: 500VDC Maximum PV array power: 5500W MPPT operating range: 60VDC to 500VDC High-current solar charging with a maximum charge current of 160A Battery System and Charging Control -Designed for 48VDC battery systems -Maximum discharge current: 220A -Charging method: CC/CV -Floating charge voltage: 54VDC -Overcharge protection: 63VDC -Lithium battery activation function supported via PV input or utility supply -Compatible operation with LiFePO4 batteries via RS485 communication -EQ function supports battery performance optimisation and can help extend lifecycle System Performance and Operating Logic -Power factor: 1.0 for full real-power output utilisation -Multiple output priority modes supported: UTL, SOL, SBU, SUB -Detachable dust cover designed for harsher operating environments Monitoring and Communications -LCD display for system status and monitoring -Communication interfaces: RS232, RS485, dry contact -Optional WiFi remote monitoring available Mechanical and Environmental -Dimensions: 540 × 415 × 122 mm -Weight: 15 kg -Operating temperature range: -10°C to 50°C Warranty and Installation Requirements Installation should be completed by a qualified electrician and set up in accordance with SANS 10142 requirements, with a valid COC issued for the installation where applicable Warranty support may require proof of compliant installation and commissioning information, depending on supplier terms
