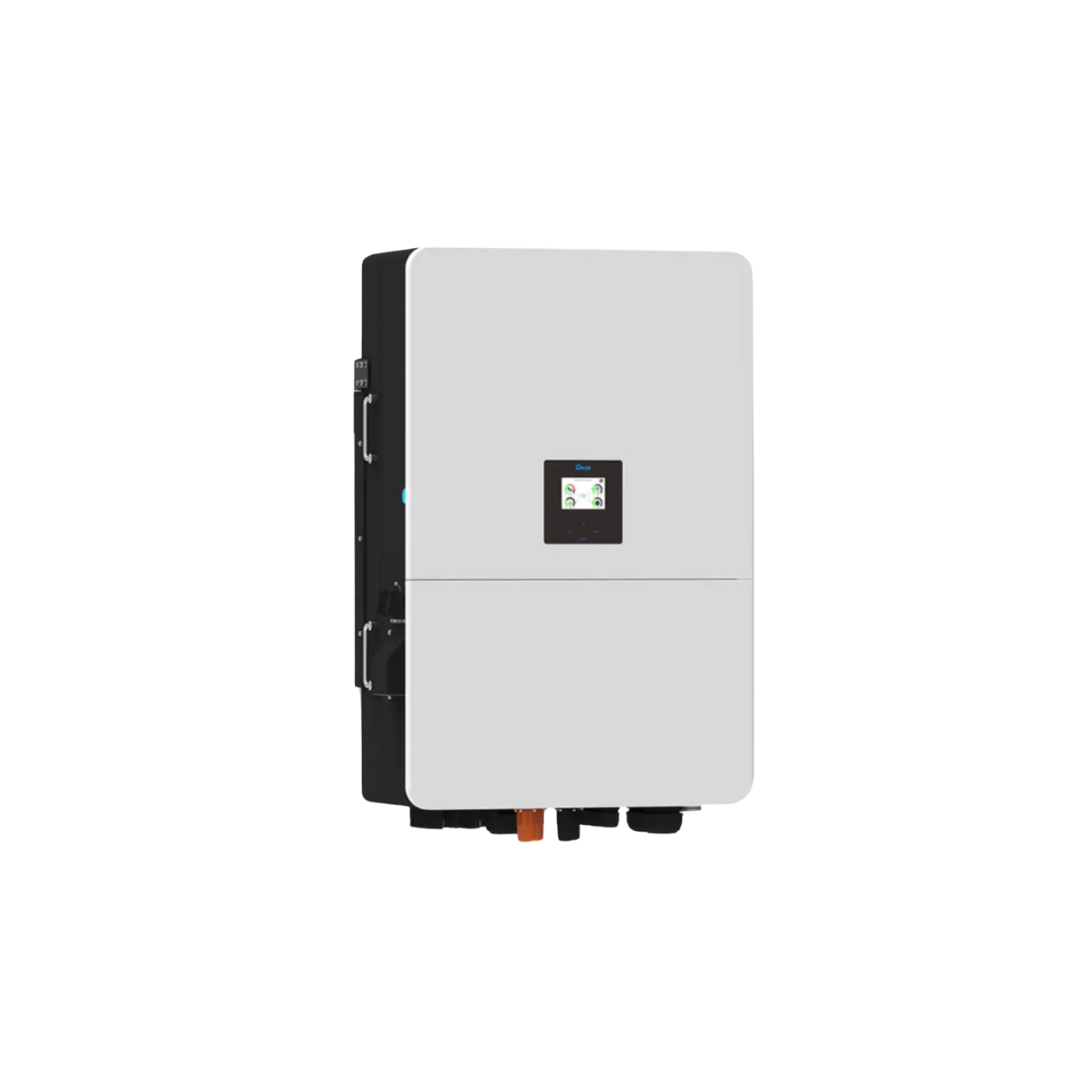

Title: Deye 80kW 3-Phase Hybrid High-Voltage Inverter – 6 MPPT, IP65 Rated Description Commercial-Grade Hybrid Power Platform The Deye 80kW High-Voltage 3-Phase Hybrid Inverter is engineered for demanding commercial and industrial solar applications. Designed to support large PV arrays and high-voltage lithium battery banks, this inverter delivers advanced energy control, grid interaction, and backup functionality in a single, robust solution. Online deal only. Unit can be ordered for in-store collection if required. Performance and Efficiency Delivers a  rated AC output of 80kW , suitable for high-load three-phase systems. Achieves up to 97.6% maximum efficiency , ensuring minimal conversion losses. Provides 1.5× peak off-grid power for 10 seconds , supporting high start-up loads. High-Voltage Battery Compatibility Designed for high-voltage lithium-ion batteries with a voltage range from 160V to 1000V . Dual charging and discharging channels rated at 80A + 80A for balanced battery performance. Intelligent self-adaptive BMS communication , enabling safe and optimized battery operation. Advanced PV Input Architecture Equipped with six independent MPPTs , each supporting two PV strings . Supports up to 128kW maximum PV input power with a 1000V DC input limit . Wide MPPT voltage range ( 150V – 850V ) improves energy harvesting across varying conditions. Smart Energy Management Integrated Energy Management System (EMS) for load prioritization and scheduling. Supports peak shaving and load shifting , reducing demand charges and time-of-use costs. Seamless operation across on-grid, hybrid, and off-grid configurations. Monitoring and Communication Built-in communication interfaces: RS485, RS232, and CAN . Monitoring options include Wi-Fi, Bluetooth, GPRS, 4G, and LAN (optional) . Enables real-time system monitoring, diagnostics, and remote management. Protection and Environmental Design IP65-rated enclosure allows for indoor or outdoor installation. Intelligent air-cooling system ensures stable operation in harsh environments. Operating temperature range from -40°C to +60°C (derating above 45°C). Comprehensive protection against over-voltage, short circuit, reverse polarity, and overheating. Typical Applications Commercial and industrial solar installations Energy storage systems with load management Grid-tied systems with backup power capability Microgrids and remote or unstable grid locations Technical Specifications Specification Details Model Number SUN-80K-SG02HP3-EU-EM6 Inverter Type Hybrid, Non-isolated AC Rated Power 80,000 W Max Apparent Power 88,000 VA Battery Type Lithium-ion (High Voltage) Battery Voltage Range 160 – 1000 V Max Charge / Discharge Current 80A + 80A MPPT Quantity 6 (2 strings per MPPT) Max PV Input Power 128,000 W Max PV Input Voltage 1000 V Rated PV Voltage 650 V Protection Rating IP65 Cooling Intelligent air cooling Warranty 5 / 10 years Standards IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1/2 Installation and Warranty Conditions Installation must be completed by a qualified electrician or registered wireman in compliance with SANS 10142 . A valid Certificate of Compliance (COC) and installation documentation are required for warranty validation. Warranty duration is subject to correct installation and system configuration.
